TrolMaster 6 Outputs 24V Control Board (OA6-24)
by TrolMaster
Save $5.02
Original Price
$100.28
Current Price
$95.26

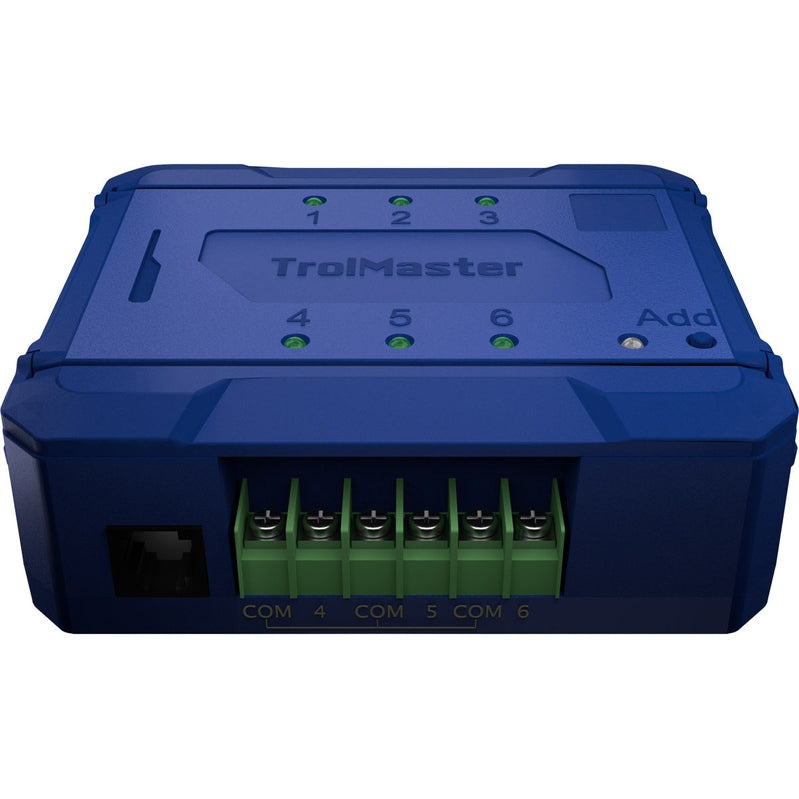

TrolMaster (OA6-24) 24V Control Board for Aqua-X System
The OA6-24 control board is designed to control multiple 24vac solenoid valves.
It provides an easy and efficient method to control up to 6 valves… each with individual timer settings. Up to 5 OA6-24 can be connected to a single Aqua-x providing a maximum of 30 individually controlled outputs to connect to your solenoid valves. The Aqua-x can also provide a “master pump link” by using a DSP-1 along with the OA6-24. Connecting a DSP-1 to the OA6-24 provides an automatic “pump link” between the DSP-1 and the OA6-24. When any of the 24vac irrigation zones are activated on the OA6-24, the DSP-1 will automatically turn on the pump.
Features & Benefits:
Specification:
The OA6-24 control board is designed to control multiple 24vac solenoid valves.
It provides an easy and efficient method to control up to 6 valves… each with individual timer settings. Up to 5 OA6-24 can be connected to a single Aqua-x providing a maximum of 30 individually controlled outputs to connect to your solenoid valves. The Aqua-x can also provide a “master pump link” by using a DSP-1 along with the OA6-24. Connecting a DSP-1 to the OA6-24 provides an automatic “pump link” between the DSP-1 and the OA6-24. When any of the 24vac irrigation zones are activated on the OA6-24, the DSP-1 will automatically turn on the pump.
Features & Benefits:
- LED Power Indicator
- Addressing Button
- 6 Individually-Controlled 24V Outputs
- Individual LED Indicator for Each Output
- Double RJ12 Cable Sockets for Daisy Chain Connectivity
- 1 x 24V Control Board
- 1 x 16ft RJ12 Cable
Specification:
- Input Voltage :110-240 VAC
- Max Input Current :0.2A
- Max Output Voltage/Current :24VAC/0.2A per output
- Working Temperature :32°-122°F
- Working Humidity :≤90%
- Packaging Dimensions :275mm(L) x 164mm(W) x 40mm(H)
