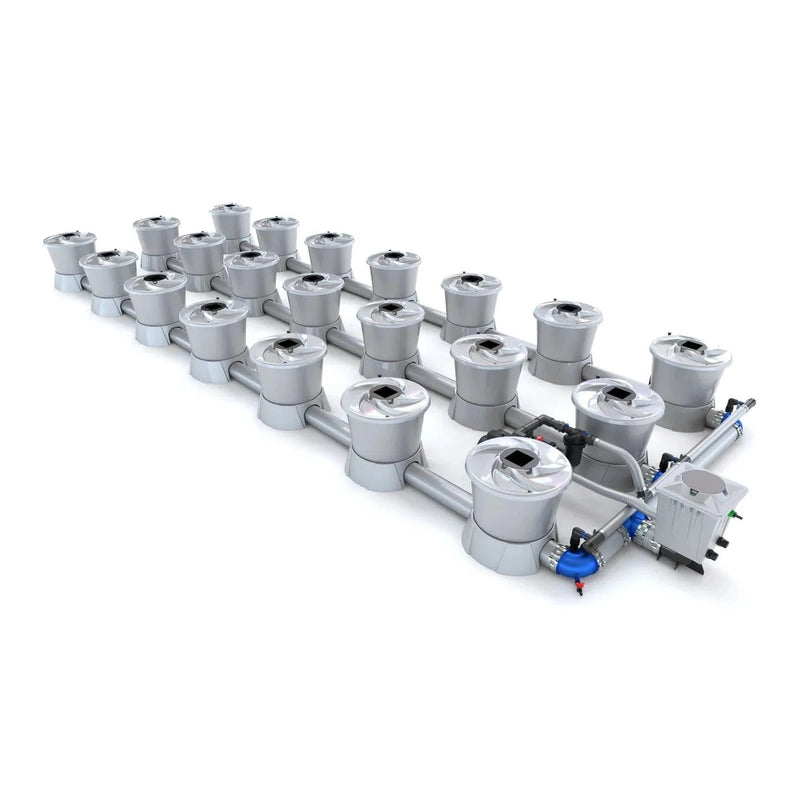

ALIEN Hydroponics V-SYSTEM 21 Pot 3 Row Hydroponic Kit

ALIEN Hydroponics V-SYSTEM 21 Pot 3 Row Hydroponic Kit

by ALIEN North America
$8,008.91

Notify me when back in stock

The ALIEN V-SYSTEM 21 Pot 3 Row Kit provides four flexible layout options for header and pump placement, allowing you to tailor the system to your specific grow space. Whether installed outside the grow tent or arranged for a more compact footprint, this kit adapts to your needs. With advanced features, straightforward assembly, and the option to create a center aisle for full plant access, this high-performance recirculating deep water culture system is designed to grow 21 plants with precision and ease.

THE ULTIMATE RECIRCULATING DEEP WATER CULTURE SYSTEM
Step into the next generation of hydroponics with the cutting-edge V-SYSTEM™. Engineered to grow massive plants with game-changing innovation, this powerful RDWC system delivers unmatched oxygenation and yield potential—developed over years of research to create the healthiest root zones possible.

Breaking industry norms, the V-SYSTEM™ eliminates the need for air pumps by using advanced Venturi valve technology to oxygenate the nutrient solution—no more clogged airstones, just simple and effective performance.

Its precision-engineered design creates a whirlpool vortex inside each pot, circulating and oxygenating the full volume of nutrient solution—not just around a single airstone. Your plant roots receive optimal oxygen and nutrients, no matter where they grow in the pot.

With ultra-wide 5" customizable return-flow tubing, root blockages are minimized, while the Vortex pump ensures a powerful, even flow—directly injecting each pot with fresh nutrients from the header. Whether you're running 4 pots or 20, every plant receives identical feeding, promoting uniform growth. Plus, direct injection delivers faster pH and nutrient adjustments than standard RDWC setups.

Each 15-gallon / 58-liter pot is built for explosive root growth, supporting enormous plants and record-breaking yields. A sloped base ensures total drainage, so your system always runs on clean, fresh water.

Unlike traditional systems, the JET-STREAM® Vortex pump is mounted outside the header and air-cooled to reduce water temperatures—lowering the risk of root disease and making pump maintenance a breeze.

Join the hydroponic revolution with the V-SYSTEM™ and experience easier, faster, and bigger growth than ever before.

Key V-SYSTEM Benefits:

  • Flexible and Configurable: set it up how best suits your particular growing area.
  • Direct nutrient distribution
  • Maximum oxygen saturation
  • No air pump needed
  • No heat transferred
  • Vortex fluid motion
  • Naturally aspirated
  • Supports large plants
  • Pots and system completely drain
  • Prevents root clogging
  • Made in Britain

Key V-SYSTEM Features:

  • 15 gallon (58L) V-POT
  • Water fill line
  • Total-drainage bases
  • Venturi injectors
  • Inspection Covers
  • 5" spiral tubing
  • 5" Dual-Flow™ fittings
  • Integrated filtration
  • T304 Stainless clamps
  • Heavy-duty components
  • Push-fit feed connections
  • JET-STREAM® Vortex™ pump
  • Float valve for automatic top-off

V-SYSTEM Advantages

Feature
V-SYSTEM
 Other (Non-ALIEN) RDWC Systems
Oxygenation method Venturi air stones (prone to clogging)
Set up without gluing ✔ ✘
Pot shape round rectangular
Customizable pot / plant spacing ✔ ✘
Header can be placed up to 39" / 100cm away (such as outside a tent) ✔ ✘
Does not require an air pump ✔ ✘
Patent-pending Dual-Flow™ fittings ✔ ✘
Silver reflective polymer pots and pipe to reject radiant heat, keeping nutrient solution cooler ✔ ✘
Easily-cleanable nutrient solution filters ✔ ✘
Float valve for automatic top-off ✔ ✘
Vortex maximizing nutrient and O2 distribution ✔ ✘
Fresh nutrient distribution direct to every pot ✔ ✘
Complete drainage possible ✔ ✘
External pump to minimize heat ✔ ✘
Plants can be rotated in their pots 1°-360° 180° only (must lift the lid & plant)
Pot size 15.3 gallon (58L) 13 gallon or smaller
Recirculation line diameter 5" 2-3" or much smaller
Kit configurations available to best fit your space 51 1 - 16
Custom configurations available (844) 873-5764 ✔ ✘



ALIEN V-SYSTEM 21 Pot 3 Row Kit – 240V Version (Complete Component List)

Includes Local North American Customer Service, Stocking, and Support

Pump & Controls:

  • 1x V-SYSTEM Vortex Water Pump 1500W 240V – 22,500 l/h

  • 1x Float Valve

  • 1x V-SYSTEM Instructions

Pots & Accessories:

  • 21x V-Pot 58L

  • 21x V-Pot Base

  • 21x V-Pot Lid

  • 21x V-Pot Lid Inspection Cover

  • 21x Square Net Pot

  • 21x V-Pot Clip

Header System:

  • 1x V-SYSTEM Header Pot 20L 50mm

  • 1x Filter Manifold Complete 50mm (2")

  • 1x Silver Lid

  • 1x Header Pot Blank

Fittings & Clamps:

  • 12x Clamp Size 4

  • 50x 5" Stainless Steel Clamp

  • 1x Hosetail 16mm - 3/4" Female (Green)

  • 22x Nut 5"

  • 22x Washer 5" Green Silicone

  • 1x Elbow 50mm Barbed

  • 1x 50mm Straight Dual Flow

  • 1x Washer 50 x 64mm

  • 1x Nut 50mm Dual Flow

Pipework:

  • 21x Pipe 28mm White Rigid (100cm each)

  • 5x Pipe 50mm Silver (100cm each)

  • 23x Pipe 5" Silver Spiral (80cm each)

  • 54x 28mm Insert for Rigid Pipe

  • 3x 28mm Push-Fit Stop End

Push-Fit Components:

  • 3x DM Push-Fit Elbow 28mm V-SYSTEM

  • 21x DM Push-Fit Tee 28-15mm V-SYSTEM

Manifolds & Distribution:

  • 1x Terminal Manifold Center 50mm

  • 1x Terminal Manifold Left 50mm

  • 1x Terminal Manifold Right 50mm

  • 1x Vortex Pump Inlet Manifold 50mm

  • 1x Distribution Tee 50mm

Drainage & Flow Components:

  • 2x Elbow 5" Barbed with Drain Point

  • 4x Elbow 5" Threaded Dual-Flow

  • 2x Tee 5" Barbed

  • 18x Tee Threaded 5" Dual-Flow

  • 1x 1/2" Drain Cap Fitting

  • 1x Drain Tap 1/2" - 16mm Barb

Tank & Misc. Connectors:

  • 2x Threaded Tank Connector 1"

  • 2x 1" Cap for Chiller Connections

Venturi System:

  • 21x Venturi Inlet Fitting for 28mm Pipe

  • 21x Silencer for Venturi

  • 21x Air Filter for V-SYSTEM Venturi (6mm)

  • 21x Venturi Air Inlet Pipe 6mm Blue (2x 4")

  • 21x Venturi Fitting

Grease & Tools:

  • 6x Silicone Grease – Food Grade

  • 1x Pipe Cutter 50mm

  • 1x Wrench for Float Valve

  • 1x 8mm Screwdriver for 5" Clamp

  • 1x 8mm Socket for 5" Clamp

  • 1x Wrench 5"

ALIEN V-SYSTEM Hydroponic Kit Set-Up Instructions

Kit Technical Drawing
FAQ

Do I need a chiller?

Yes, unless you're keeping your grow room between 65-68°F at all times- which is colder than we would recommend.

What temperature should the nutrient solution be?

The nutrient solution temperature should be maintained between 66-69 °F (19-20 °C) to discourage pathogenic bacteria and fungi while maximizing oxygenation.

What level should the nutrient solution be filled to?

The V-SYSTEM pots have a fill indicator line inside each pot that shows the optimal nutrient solution level. When first placing small plants without dangling roots into the system, the nutrient solution level should be kept slightly higher for a few days to keep the roots wet while they grow down into the pot- simply inspect the roots with the handy inspection lids on the V-POT to know when your plants are ready to take off.

Should the water pump run 24/7?

Yes, the pump should be kept running at all times when plants are in the system, except when completely draining the system for a nutrient change-out. Never run the pump when dry- this damages the pump in the long term.

What if power fails?

In the event of a power failure, the ultra-oxygenated liquid around the plants' roots in the V-Pots provides a safe buffer for a relatively long time; depending on the plants' size (larger plants are thirstier for nutrients and oxygen) you have many hours to a day or more before other measures are required to keep the plants happy without the water flowing. Compared to other media-less hydroponic methodss, recirculating deep water culture (RDWC) systems, as used in the V-SYSTEM, are the most resiliant to power-failure situations.

How frequently are nutrient change-outs needed?

To keep the plants in the freshest, optimally-balanced nutrient solution, change-outs should happen every 7-10 days, or more frequently if pH levels are drifting significantly from from day to day.

Is it necessary to completely drain the whole system for a nutrient change-out?

No; many growers change out only half the nutrient solution each time. If you're having issues with pathogens in your system, a complete drain and replacement is beneficial.

What is the ideal nutrient solution pH?

5.8 to 6.0 is generally ideal, but it is usually best to follow the recommendations of your fertilizer manufacturer- they are usually designing their nutrients for an optimal absorption rate at a specific pH value.

How should pH be adusted?

Don't pour concentrated pH-up or pH-down solutions directly into the header pot as this can shock plants in the system. We recommend diluting the pH-adjustment solution in water (about 30ml / 2 Tablespoons per gallon of water) before slowly adding it to the header pot. Wait 4-5 minutes for it to distribute through the system (with the V-SYSTEM, distribution is much faster than with other RDWC systems!) and test and re-test the pH; once it has stabilized, you can add more adjustment solution if needed and repeat the procedure until the optimal pH has been achieved.

How can the system be completely drained?

Connect a hose- or a pump and hose for even faster drainage- to the convenient drain barbs on the V-SYSTEM's elbows. With the sloped-base V-Pots and patent-pending Dual-Flow™ fittings, all of the nutrient solution in the entire system can be drained.

Can I use organic nutrients with the V-SYSTEM?

While everything about the V-SYSTEM is designed to prevent clogging, organic nutrients, sugars and bacterial additives tend to cause build-up and eventual clogging in the distribution pipes. Mineral or "salt-based" nutrients are recommended over "organic" nutrients for the V-SYSTEM.

Can I expand my V-SYSTEM?

Yes, additional pots and rows can be added later. The solvent-free (glue-free) connections allow the V-SYSTEM to be disassembled and re-assembled in a different configuration, or with additional pots. As the run of pots down each row gets longer, the pump may need to be upgraded and nutrient distribution pipe may need to get larger to handle the additional flow- Contact us with additional questions!

Specifications
Number of pots: 21
Number of rows: 3

Kit Total Fluid Volume: 335.7 gallons / 1270.8 liters

Minimum assembled size (can space pots more widely for a larger footprint):
Setup Configuration: MIH MOL MOR MSP
Length: 172½" 192⅛" 190¾" 188⅜"
Width: 65¾" 65¾" 65¾" 65¾"
Maximum assembled size (can space pots more closely for a smaller footprint):
Setup Configuration: MIH MOL MOR MSP
Length: 271⅝" 308¼" 304½" 301"
Width: 139¾" 139¾" 139¾" 139¾"

Water Pump Included with the Kit:
V-SYSTEM Vortex Water Pump 1500W 240V 22500 l/h
